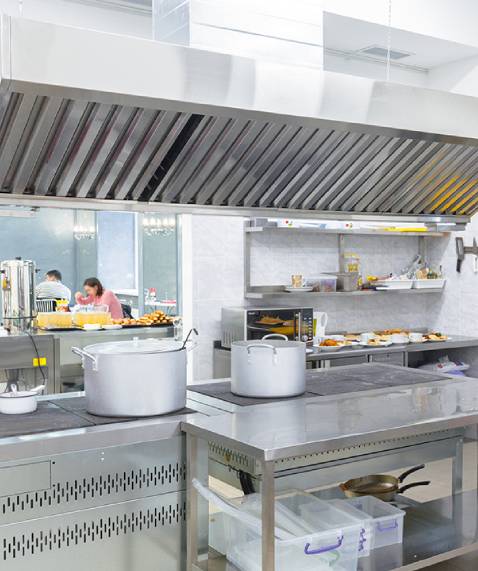

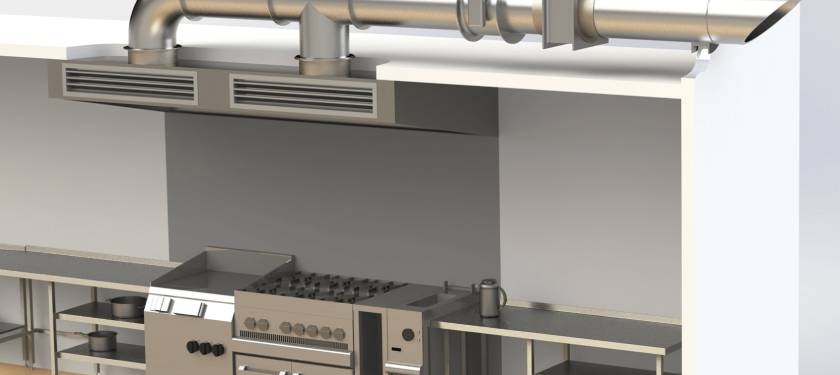

Ventilation is the single most important factor in the design, construction and operation of commercial kitchens. Without adequate ventilation and an ample supply of clean makeup air, no kitchen will operate efficiently. There are particular objectives which the ventilation has to achieve. The objectives include the following:
Minimum Exhaust Flow Rate, L/s per linear metre food | ||||
---|---|---|---|---|
Type of Hood | Light Duty | Medium Duty | Heavy Duty | Extra Heavy Duty |

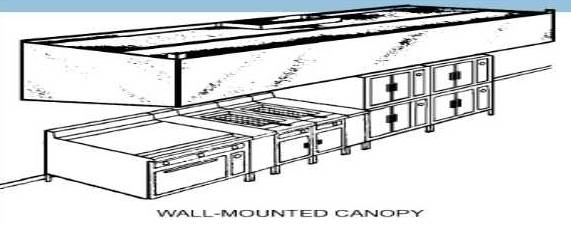

Wall-mounted canopy, unlisted listed |
310 230 to 310 |
465 310 to 465 |
620 310 to 520 |
850 540+ |

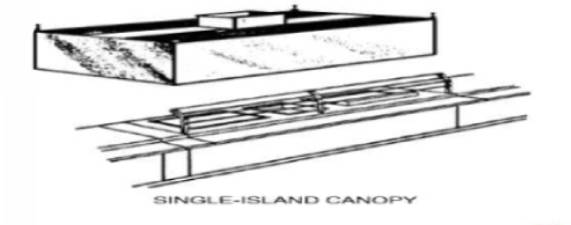

Single-island, unlisted listed |
620 390 to 465 |
775 465 to 620 |
930 465 to 930 |
1085 850+ |

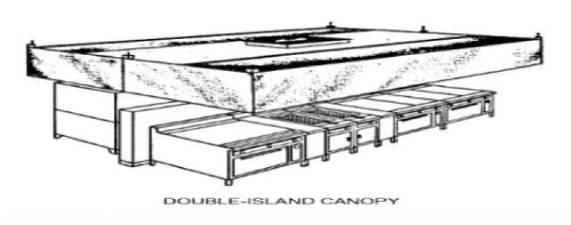

Double-island (per side), unlisted listed |
390 230 to 310 |
465 310 to 465 |
620 390 to 620 |
885 775+ |

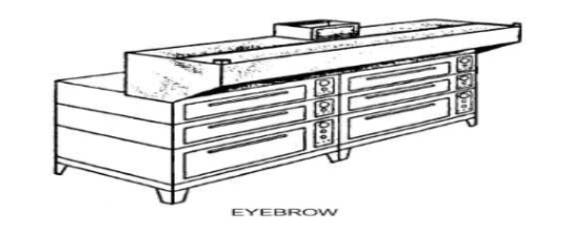

Eyebrow, unlisted listed |
390 230 to 390 |
390 230 to 390 |
Not allowed - |
Not allowed - |

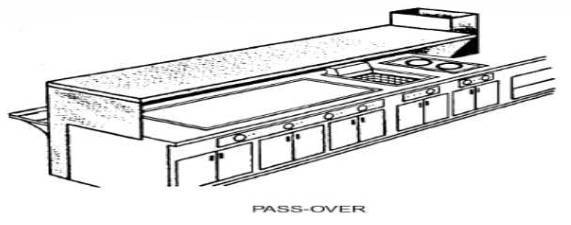

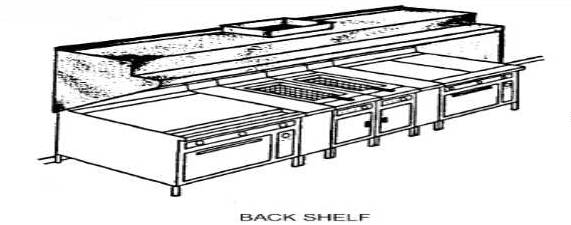

Back shelf/proximity/pass-over, unlisted listed |
465 155 to 310 |
465 310 to 465 |
620 465 to 620 |
Not allowed Not recommened |

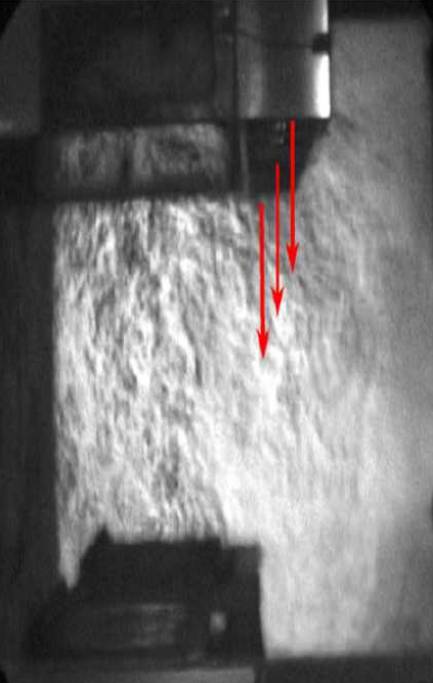

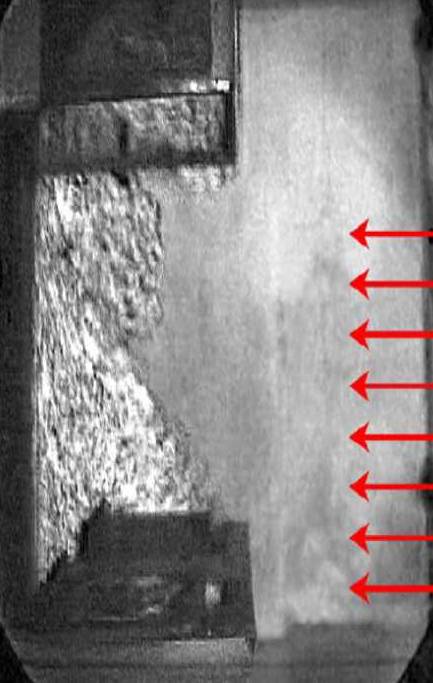

Schlieren Image Shows Effective Plume Capture with Makeup Air Supplied through 40mm Wide Perforated Perimeter Supply
Schlieren Image Showing Effective Plume Being Effectively Captured when Makeup AIr is Supplied at Low Velocity From Displacement Diffusers
Schlieren Image Showing Thermal Plume Being Pulled Outside Hood by Air Curtain
Schlieren Image Showing Thermal Plume Being Pulled Outside Hood by Front Face
